2 - HAAS CNC Vertical Machining Centres

  • - Main spindle features high torque, direct speed belt drive
  • - 20HP, 10,000/7,500 RPM high speed spindle
  • - 40" X 20" X,Y table travel. 25" Z spindle travel
  • - CT 40 spindle taper with synchronized tapping function
  • - 24/20 Position high speed automatic tool changer, random bi-directional
  • - Rapid traverse 1000 IPM X/Y/Z
  • - Up to 650 IPM feed rate
  • - 4th and 5th axis capabilities
  • - High pressure programmable coolant nozzle
  • - Quick code programming system
  • - Co-ordinate rotation and scaling
  • - +/-.0002" Axis position accuracy
  • - +/-.0001" Axis position repeatability
  • - Programmable auger chip conveyor
  • - Rigid tapping
HAAS CNC SL-30 Series Turning Centre

  • - Main spindle features high torque, direct speed belt drive
  • - 30HP, 3,400 RPM high torque spindle
  • - 10" programmable hydraulic chuck
  • - 3.5" spindle bore, 3.0" bar capacity
  • - 17" diameter turning X 34" cutting length
  • - 12 position high speed automatic tool changer, random bi-directional
  • - Rapid traverse 710 IPM X/Z
  • - High pressure programmable coolant nozzle
  • - Programmable tail stock
  • - Quick code programming system
  • - Co-ordinate rotation and scaling
  • - +/-.0002" Axis position accuracy
  • - +/-.0001" Axis position repeatability
  • - Programmable auger chip conveyor
  • - Rigid tapping
Welding Equipment
- Oxy-acetylene
- MIG / TIG / Stick Welders
- Assembly Capabilities

Engineering
- In House Design & Engineering       - Master Cam Version 10                     - Cimco DNC Software

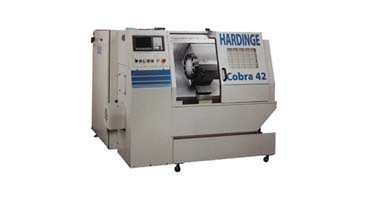

Hardinge 42
CNC Turning Centre




  • - Main spindle features high speed, direct speed belt drive
  • - 10HP, 5,000 RPM high speed spindle
  • - 6" Programmable chuck
  • - 1.65" spindle bore, 1.5" bar capacity
  • - 10.00" diameter turning X 14.00" cutting length
  • - Programmable spindle collet 16C capacity
  • - Programmable tail stock
  • - 12 Position high speed automatic tool changer, random bi-directional
  • - High pressure programmable coolant nozzle
  • - +/-.0002" Axis position accuracy
  • - +/-.0001" Axis position repeatability

Horizontal Saw ST-10
- Capacity 12" X 8" Rectangular, 10" Round
- Workload 2,000 lbs

ICOCA Conventional Lathe
- 10" Chuck
- Pratt Burnerd Collet chuck
- 18" diameter turning X 60" cutting length

Bridgeport Tool Room Mills
- R8 and NMTB 40
- Digital Readout
- Tool and Fixture building capabilities.
